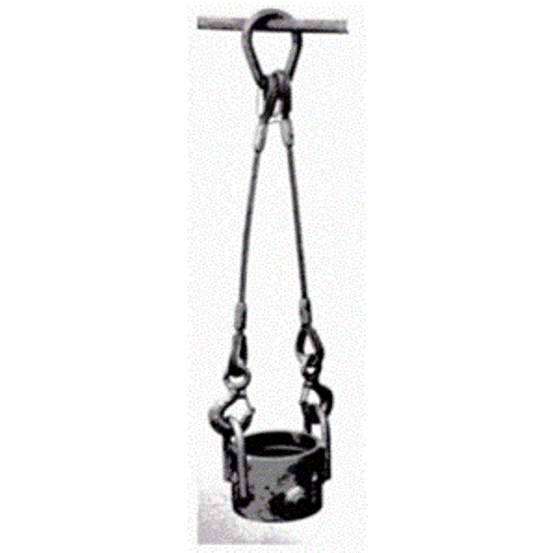

The hoisting assembly is used to lift the auger string hoist and features a heavy-duty wire cable bridal assembly with two snap on safety hooks.
| Description | Part # | Lbs. | Kg |
| 2 1/4″ (57 mm) DK | AHA2142 | 20 | 9.1 |
| 3 1/4″ (83 mm) DK | AHA3142 | 21 | 9.5 |
| 3 1/4″ (83 mm) DK HD | AHA3142HD | 21 | 9.5 |
| 3 1/4″ (83 mm) TK | AHA3143 | 21 | 9.5 |
| 3 1/4″ (83 mm) TK HD | AHA3143HD | 21 | 9.5 |
| 4 1/4″ (108 mm) DK | AHA4142 | 22 | 10 |
| 4 1/4″ (108 mm) DK HD | AHA4142HD | 22 | 10 |
| 4 1/4″ (108 mm) TK | AHA4143 | 22 | 10 |
| 4 1/4″ (108 mm) TK HD | AHA4143HD | 22 | 10 |
| 6 1/4″ (159 mm) DK | AHA6142 | 27 | 12.2 |
| 6 1/4″ (159 mm) DK HD | AHA6142HD | 27 | 12.2 |
| 6 5/8″ (168 mm) TK | AHA6583 | 28 | 12.7 |
| 6 5/8″ (168 mm) TK HD | AHA6583HD | 28 | 12.7 |
| 8 1/4″ (210 mm) DK HD | AHA8142HD | 36 | 16.3 |
| 8 1/4″ (210 mm) TK | AHA8143HD | 36 | 16.3 |
| 10 1/4″ (260 mm) TK HD | AHA10143HD | 48 | 12.1 |
| 12 1/4″ (311 mm) TK HD | AHA12143HD | 59 | 26.8 |
