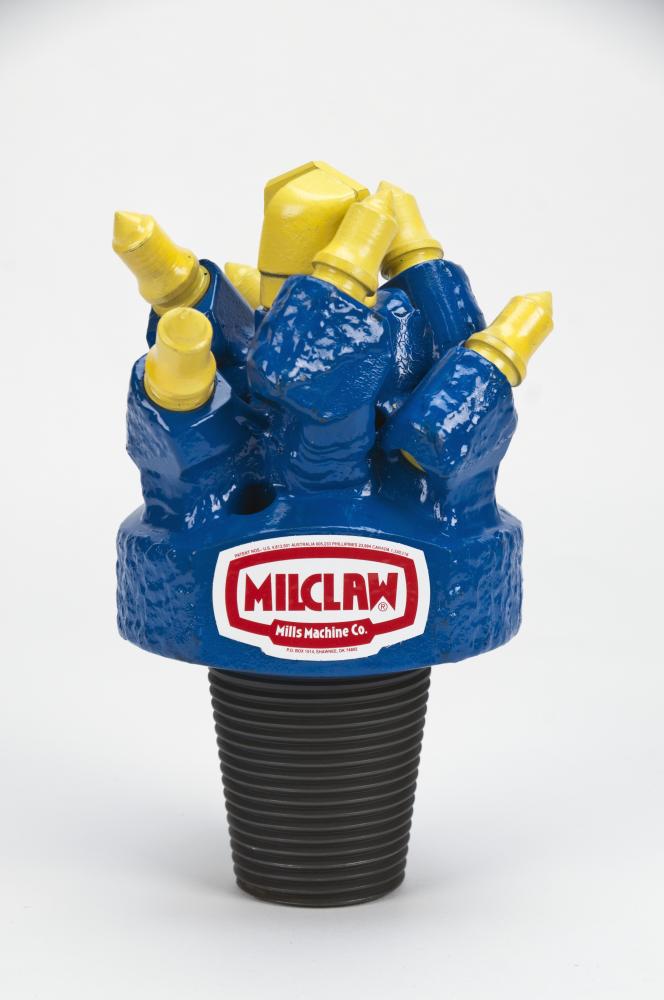

The Mills Machine MILCLAW® Bit is an improved, perfected version of the KENCLAW® Bit. Protected by a U.S. Patent, as well as several International Patents, this claw bit features a triangular, multi-stage body design that provides better support for the cutters and enables it to cut through harder formations. MILCLAW® Bits are best suited for drilling in medium soft to medium hard formations. MILCLAW® Bits are available in the standard sizes listed below, with the standard connections listed below. Other sizes and connections can be custom manufactured to meet your needs. Please contact one of our sales representatives for additional information. The design for the MILCLAW® Bit changes at 14 3/4″ and larger to a Heavy Duty Reamer type.
| * | Description | Part # | Pilot Bit | # Cutters | Lbs. | Kg |
| MILCLAW® Bits | ||||||
| S | 6 1/2″ (162mm) MILCLAW Bit, 3 1/2″ API Reg. Pin | MC0612 | CP18 | 6 | 35 | 15.9 |
| S | 6 3/4″ (172mm) MILCLAW Bit, 3 1/2″ API Reg. Pin | MC0634 | CP18 | 6 | 35 | 15.9 |
| S | 7 7/8″ (200mm) MILCLAW Bit, 4 1/2″ API Reg. Pin | MC0778 | CP18 | 7 | 51 | 23.1 |
| S | 8 3/4″ (222mm) MILCLAW Bit, 4 1/2″ API Reg. Pin | MC0834 | CP18 | 8 | 60 | 27.2 |
| S | 9″ (229mm) MILCLAW Bit, 4 1/2″ API Reg. Pin | MC0900 | CP18 | 9 | 65 | 29.5 |
| S | 9 7/8″ (251mm) MILCLAW Bit, 6 5/8″ API Reg. Pin | MC0978 | CP18 | 9 | 88 | 39.9 |
| S | 10 5/8″ (295mm) MILCLAW Bit, 6 5/8″ API Reg. Pin | MC1058 | CP18 | 14 | 128 | 58.1 |
| S | 12 1/4″ (311mm) MILCLAW Bit, 6 5/8″ API Reg. Pin | MC1214 | CP18 | 17 | – | – |
| MILCLAW® Reamers | ||||||
| 14 3/4″ (375mm) MILCLAW Reamer, 6 5/8″ API Reg. Pin | MC1434 | MC0634 | – | – | ||
| 17 1/2″ (445mm) MILCLAW Reamer, 6 5/8″ API Reg. Pin | MC1712 | MC0634 | – | – | ||
| 20″ (500mm) MILCLAW Reamer, 6 5/8″ API Reg. Pin | MC2000 | MC0778 | – | – | ||
| 22″ (559mm) MILCLAW Reamer, 7 5/8″ API Reg. Pin | MC2200 | MC0778 | – | – | ||
| 24″ (610mm) MILCLAW Reamer, 7 5/8″ API Reg. Pin | MC2400 | MC0778 | – | – | ||
