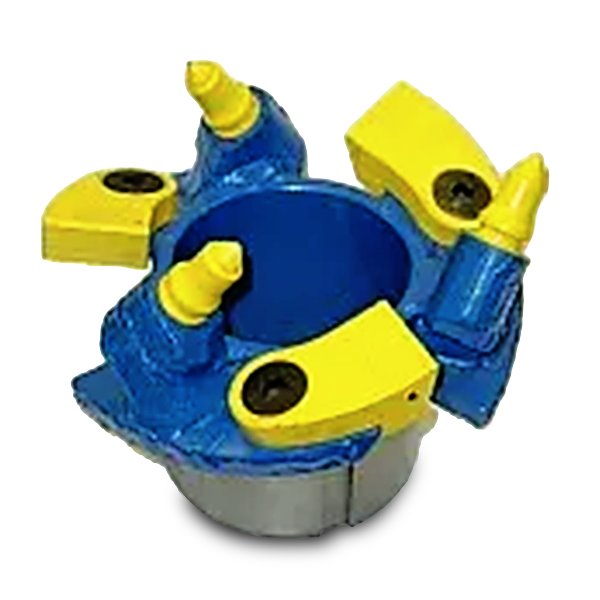

Blade/Bullet Cutterhead
Our Blade/Bullet Cutterhead features both our Blade Cutters and our Bullet Cutters. It is most effective in soft to medium formations such as clay, hard sandstone, and hard shale. Description Part # Lbs. Kg. 3 1/4″ (83mm) DK Blade/Bullet Cutterhead – 7 1/2″ (190mm) O.D. ACH314260 14 6.4 6 1/4″ (159mm) DK Blade/Bullet Cutterhead – […]
Spade Cutterhead
Description Part # Lbs. Kg. 2 1/4″ (57mm) DK Spade Cutterhead – 6 1/2″ (165mm) O.D. ACH214251 10 4.5 3 1/4″ (83mm) DK Spade Cutterhead – 7 1/2″ (190mm) O.D. ACH314251 12 5.5 3 3/4″ (95mm) DK Spade Cutterhead – 8 1/2″ (216mm) O.D. ACH334251 20 9.1 3 3/4″ (95mm) DK HD Spade Cutterhead – […]

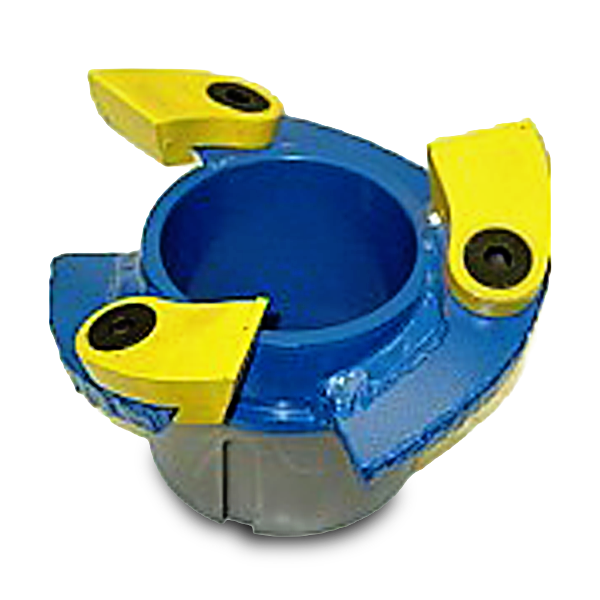

Blade Cutterhead
Our Blade Cutterhead features carbide-tipped Blade Cutters, most effective in soft to medium/soft formations such as dirt, clay, mild sandstone, and light shale. Description Part # Lbs. Kg. 3 1/4″ (83mm) DK Blade Cutterhead – 7 1/2″ (190mm) O.D. ACH314250 11 5 3 3/4″ (95mm) DK Blade Cutterhead – 8 1/2″ (216mm) O.D. ACH334250 16 […]
8 1/4″ (210mm) Triple Key Heavy Duty Hollow Stem Auger
All 8 1/4″ (210mm) Triple Key Heavy Duty Hollow Stem Augers feature a continuous hardfaced flighting design, 3/8″ (9.5mm) thick on the outer edge with a 6″ (152mm) pitch. The heavy duty, tapered tool joints are made from 4142 alloy steel and feature double-bolt connections. Description Part # Lbs. Kg. Auger Section 1 8 1/4″ […]
8 1/4″ (210mm) Double Key Heavy Duty Hollow Stem Auger
All 8 1/4″ (210mm) Double Key Hollow Stem Augers feature a continuous hardfaced flighting design, 3/8″ (9.5 mm) thick on the outer edge with a 6″ (152mm) pitch. The heavy duty, tapered tool joints are made from 4142 alloy steel and feature double-bolt connections. Description Part # Lbs. Kg. Auger Section 1 8 1/4″ (210mm) […]
7 1/4″ (184mm) Double Key Heavy Duty Hollow Stem Auger
All 7 1/4″ (184mm) Double Key Hollow Stem Augers feature a continuous hardfaced flighting design, 3/8″ (9.5mm) thick on the outer edge with a 6″ (152mm) pitch. The heavy duty, tapered tool joints are made from 4142 alloy steel and feature double-bolt connections. Description Part # Lbs. Kg. Auger Section 1 7 1/4″ (184mm) DK […]
6 5/8″ (169mm) Triple Key Heavy Duty Hollow Stem Auger
All 6 5/8″ (169mm) Triple Key Heavy Duty Hollow Stem Augers feature a continuous hardfaced flighting design, 3/8″ (9.5mm) thick on the outer edge with a 6″ (152mm) pitch. The heavy duty, tapered tool joints are made from 4142 heat-treated alloy steel and feature double-bolt connections. Description Part # Lbs. Kg. Auger Section 1 6 […]
6 1/4″ (159mm) Double Key Hollow Stem Auger
All 6 1/4″ (159mm) Double Key Hollow Stem Augers feature a continuous hardfaced flighting design, 3/8″ (9.5mm) thick on the outer edge with a 6″ (152mm) pitch. The tool joints are made from 4142 heat-treated alloy steel and feature double-bolt connections. Description Part # Lbs. Kg. Auger Section 1 6 1/4″ (159mm) DK Hollow Stem […]
6 1/4″ (159mm) Double Key Heavy Duty Hollow Stem Auger
All 6 1/4″ (159mm) Double Key Heavy Duty Hollow Stem Augers feature a continuous hardfaced flighting design, 3/8″ (9.5mm) thick on the outer edge with a 6″ (152mm) pitch. The heavy duty, tapered tool joints are made from 4142 heat-treated alloy steel and feature double-bolt connections. Description Part # Lbs. Kg. Auger Section 1 6 […]
4 1/4″ (108mm) Triple Key Hollow Stem Auger
All 4 1/4″ (108mm) Triple Key Hollow Stem Augers feature a continuous hardfaced flighting design, 3/8″ (9.5mm) thick on the outer edge with a 5″ (117mm) pitch. The tool joints are made from 4142 alloy steel and feature double-bolt connections. Description Part # Lbs. Kg. Auger Section 1 4 1/4″ (108mm) TK Hollow Stem Auger […]
